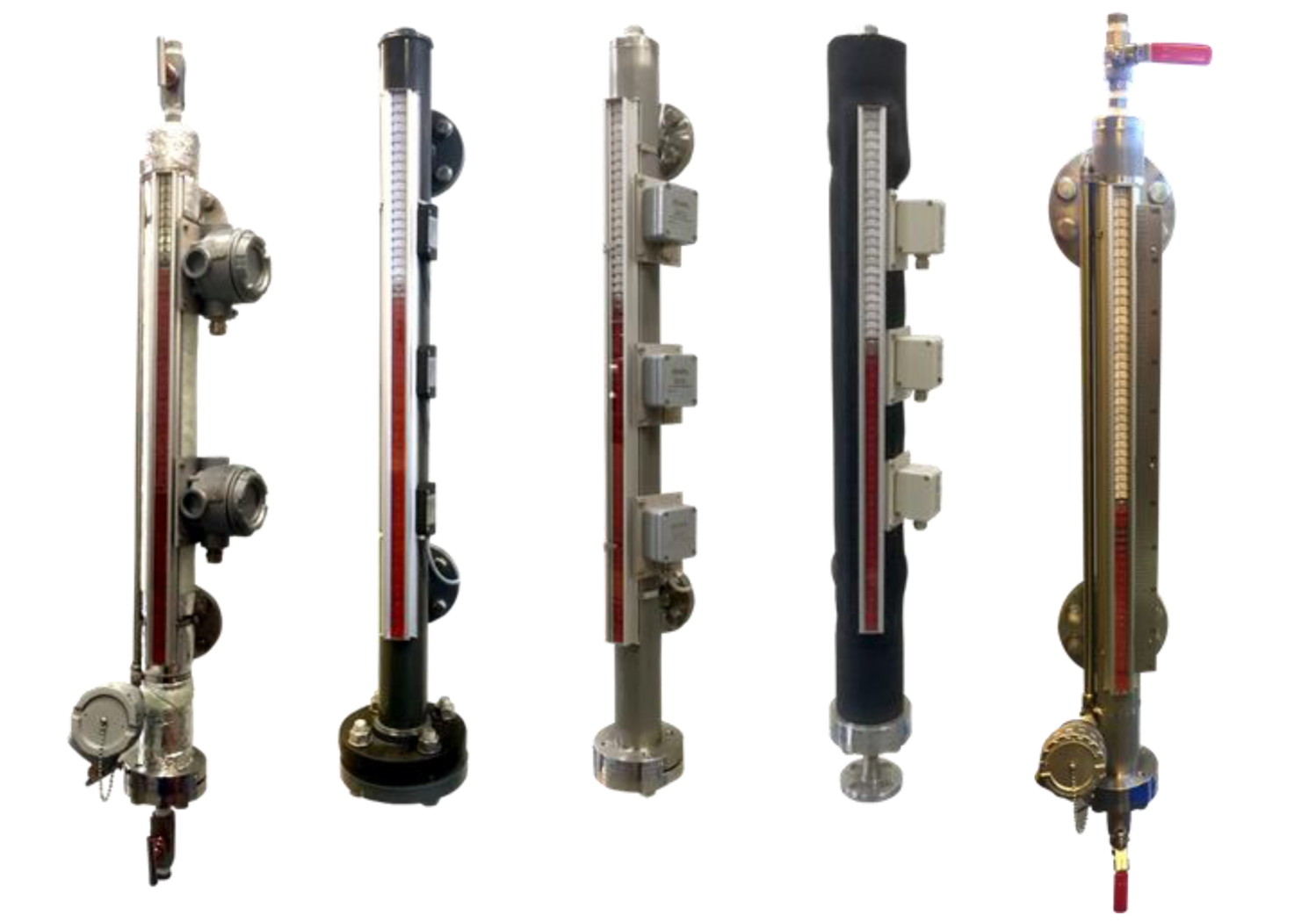

Magnetic Level Gauge

Magnetic level gauges work on the principle of communicating vessels, therefore the level in the measuring chamber will be the same as the level in the vessel. The measuring chamber is fitted with a float, which has a magnet inside. The float with magnet will float on the medium and the magnet in the float will turn the flaps of the indicating rail.

The float in the measuring tube is standard not pressurized and has no magnetic or mechanical guidance. This construction makes the float less dangerous than a float which is standard pressurized. When necessary Hadro can produce a pressurized float. With the below mentioned process conditions it is possible to select a float which will float on the medium.

● Medium

● Density

● Working pressure

● Temperature

Take one of the models for example, should choose the model by actual process condition.
