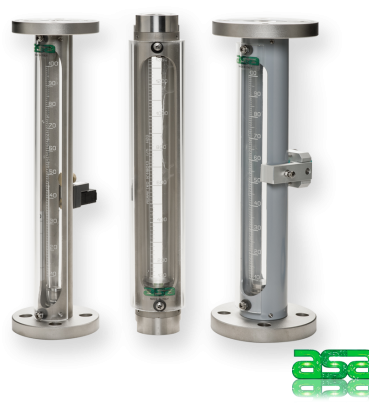

Glass Tube Flowmeter
Asameters® E and N series are rugged flowmeters, suitable for measuring instantaneous flow of any type of fluid (gas and liquid), at temperature and pressure conditions kept within glass resistance limits, in absence of water hammer.
They are ideal where it is essential to show the flow of medium through the glass measuring tube and the float, the only moving part, ensuring the reliability of measurement over time.
These Asameters® not require power supply ensuring a cost-free measure even in hazardous areas (ATEX classified). Therefore are best used in applications where control of flow should not weigh too heavily on the cost of the system.
Also the low pressure losses are a strong point for this family of Asameters as they allow the installation of non-performing pumps on the plant.
Measuring Range:
1:10(depends on process condition)
Accuracy:
±1.5% f.s.v. (standard, without display)
± 1% f.s.v. (standard, with transmitter and display)
Repeatability:
0.5% f.s.v.
Max pressure:
40 bar (higher on request)
Temperature:
(Standard) -10~ +150 °C (302° F)
(High Temperature) -30~+300 °C (572° F)
Process connection:
Depends on the request
Analog Output(Optional):
4 – 20 mA with serial port communication overlapped to HART® protocol
Display (Optional):
LCD 8 digits for instant flow –direct or percent reading – and total flow.
Feeding(only for transmitter type):
levels 24 V dc ±10%
Explosion protection level(Optional):
Ex d IIC T4…T6
