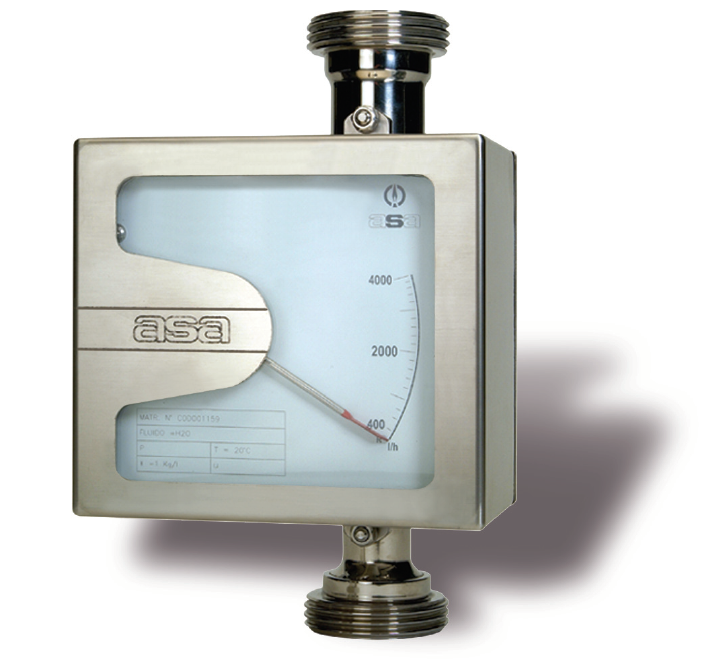

Metal Tube Flowmeter

Asameters model C-G…38/39 all made of stainless steel are designed for medium and high flow rates for every kind of gas (mod. C) and liquid (mod. G) also aggressive, at extreme operating and environmental conditions (high pressures and/or low or high temperatures).

These Asameters are ideal for flow measurement where safety and product reliability are a must and not require power supply (in standard version with flow indicator only) ensuring a cost-free measure even in hazardous areas.

Further advantage is the dimension of only 250 mm, making them suitable for installation in tight spaces. No straight sections are required upstream or downstream.

They can be supplied with flow indicator only or together with a microprocessor board for instantaneous, totalized and percentage flow rate with 4-20 mA output signal, Hart protocol (power supply: 24Vdc ± 10%) and Profibus PA interface (on request). All in 2-wire technology.

Asameters model C-G…38 _ 39 are also available in intrinsically safe version, ATEX certified EEx ia IIC T6 Zone 0 and Zone 1 (on request) and can be supplied with flameproof Exd design (see Model C-G 47… 50).

The installation can be vertical with upward flow (standard execution) or on horizontal pipeline (horizontal meter orientation on request).
