Electromagnetic Flowmeter

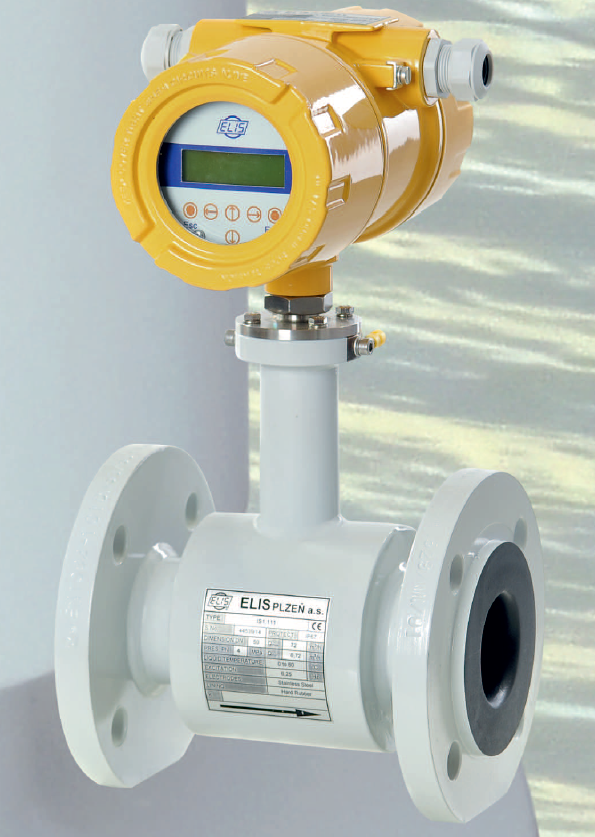

FLONET FH30xx electromagnetic flow meter is designed to measure the flow of electrically conductive liquids in waterworks, heating plants and the chemical or food industry. The measured data can be transferred to a control room using the RS485/MODBUS RTU.
Measuring range:
0.025 to 10 m/s (0.08 to 33 ft/s)
Nominal diameter / size:
DN15 to DN300 / 1/2" to 12"
Nominal pressure [bar / psi]:
10, 16 or 40 (related to diameter) / 150 (related to size)
Min. conductivity of measured liquid:
10 µS/cm
Electrode material:
stainless steel, grade 1.4571 (316Ti), Hastelloy C276, Titanium, Tantalum
Ambient temperature max. range:
–35°C to +60°C (–31°F to 140°F) depending on temperature class: T3 to T6
Sensor lining:
soft or hard rubber for potable water, PTFE
Design version:
compact or with remote transmitter
Piping connection:
flanges EN1092-1, ASME B16.5
Protection class:
IP 67
ATEX / IEC approval :
II 2G Ex db eb ib [ib] IIB T6…T3 Gb
II 2D Ex tb IIIC T80°C…T155°C Db
Outputs:
current 4 to 20 mA, insulated
2x multifunctional outputs (pulse, frequency 0 to 10kHz, binary) insulated
Measurement repeatability:
± 0.15%
Power supply:
95 to 250V, 50 to 60Hz (AC) or 24V ± 20% (DC) 19.2 to 28.8V
communication protocol:
Modbus
